Choosing the right paint thickness gauge for coating inspection depends heavily on your specific needs, whether you’re inspecting automotive paint layers or conducting industrial quality checks. Among the top options in 2026, the Coating Thickness Gauge CM-208FN stands out for its high-precision measurements and USB data export, making it ideal for detailed reports. The Paint Thickness Gauge CM-205FN offers a user-friendly interface with a backlit LCD and broad measurement range suited for automotive professionals. Meanwhile, the CM-224 provides a versatile solution for automotive inspections, with automatic substrate detection and easy operation. Each of these models balances accuracy, ease of use, and suitability for different environments, but they also have their limitations, especially regarding substrate compatibility and power needs.
Complete the kit
Key Takeaways
- The CM-208FN excels in high-precision measurements on metal surfaces and is best for detailed field inspections requiring data export.
- The CM-205FN offers ease of use and a broad measurement range, making it ideal for automotive settings and quick inspections.
- The CM-224 provides automatic substrate detection and is suitable for both professional and DIY automotive inspection tasks.
- All models are limited to metal substrates, so plastics or composites require different tools.
- Battery life and calibration processes vary, impacting long-term usability and setup complexity.
| Coating Thickness Gauge CM-208FN – 0-2000µm (0-78 mils) Industrial Paint Thickness Meter with USB Data Export |  | Best for High-Precision Metal Inspection and Data Management | Measurement Range: 0-2000µm (0-78 mils) | Resolution: 0.001 mils (0.1 µm) | Auto Detection: Fe/NFe (steel/aluminum) | VIEW ON AMAZON | See Our Full Breakdown |
| Paint Thickness Gauge CM-205FN for Cars – Digital Coating Thickness Meter with Auto Fe/NFe Detection, 0.1 μm Resolution, 0–1500 μm Range |  | Best for Automotive and Industrial Metal Surface Inspection | Resolution: 0.1 μm | Measurement Range: 0–1500 μm | Accuracy: ±(3%+2 μm) | VIEW ON AMAZON | See Our Full Breakdown |
| Digital Coating Thickness Meter for Automotive Inspection, CM-224 |  | Best for Versatile Automotive Metal Inspection with Auto Substrate Detection | Resolution: 0.1 μm | Range: 0–1500 μm | Substrate Detection: Fe, NFe, Fe+Zn | VIEW ON AMAZON | See Our Full Breakdown |
| paint thickness gauge for coating inspection | Resolution | Measurement Range | Substrate Detection | Display |
|---|---|---|---|---|
| Coating Thickness Gauge CM-208 | 0.001 mils (0.1 µm) | 0-2000µm (0-78 mils) | — | — |
| Paint Thickness Gauge CM-205FN | 0.1 μm | 0–1500 μm | Automatic Fe/NFe | Backlit LCD |
| Digital Coating Thickness Mete | 0.1 μm | — | Fe, NFe, Fe+Zn | Backlit LCD |
More Details on Our Top Picks
Coating Thickness Gauge CM-208FN – 0-2000µm (0-78 mils) Industrial Paint Thickness Meter with USB Data Export
The CM-208FN stands out for its exceptional measurement resolution of 0.001 mils and its automatic detection of steel and aluminum, reducing user errors during field inspections. Its ability to export data via USB makes it particularly valuable for detailed reporting and analysis, especially in industrial environments. Compared with smaller, simpler gauges, this device is more suited to professionals who need detailed records and high accuracy, but it’s limited to metal substrates only, which could be a drawback for those working with plastics or composites. Its robust build makes it suitable for tough conditions, yet the manual interpretation of data means it’s not as straightforward for casual users.
Pros:- High-precision measurement with 0.001 mil resolution
- Automatic detection reduces user error
- USB data export enhances reporting capabilities
- Durable for field use
Cons:- Limited to metal substrates
- Requires manual data interpretation
- Higher price point for advanced features
Best for: Professional inspectors needing detailed data and high accuracy on metal surfaces
Not ideal for: Users working with non-metallic substrates or requiring simple, quick checks
- Measurement Range:0-2000µm (0-78 mils)
- Resolution:0.001 mils (0.1 µm)
- Auto Detection:Fe/NFe (steel/aluminum)
- Temperature Range:−4°F to 122°F (−20°C to +50°C)
- Material Compatibility:Metal substrates only
- Data Export:USB
Our verdict“Ideal for professionals demanding precise measurements and comprehensive data management on metal surfaces.”
Paint Thickness Gauge CM-205FN for Cars – Digital Coating Thickness Meter with Auto Fe/NFe Detection, 0.1 μm Resolution, 0–1500 μm Range
The CM-205FN offers a balance of high accuracy with a user-friendly design, featuring a backlit LCD for easy readings in various lighting conditions. Its resolution of 0.1 μm and a measurement range up to 1500 μm make it suitable for automotive applications, especially when checking paint thickness or detecting repainting. Automatic Fe/NFe detection simplifies operation, and its calibration options ensure reliable results. However, it’s limited strictly to metallic substrates, which may exclude some specialty coatings or composite materials. Batteries are required for operation, and some users report calibration complexity, especially for those unfamiliar with the process.
Pros:- High accuracy with 0.1 μm resolution
- Automatic detection of ferrous and non-ferrous metals
- Backlit LCD for visibility in various conditions
- Wide measurement range suitable for automotive use
Cons:- Limited to metal surfaces
- Batteries not included
- Calibration may be complex for some users
Best for: Automotive professionals and detailers seeking quick, reliable measurements
Not ideal for: Users needing to inspect plastics or composites or those without battery access
- Resolution:0.1 μm
- Measurement Range:0–1500 μm
- Accuracy:±(3%+2 μm)
- Substrate Detection:Automatic Fe/NFe
- Display:Backlit LCD
- Technology:Magnetic induction + Eddy current
Our verdict“Best suited for automotive and industrial metal inspections needing quick, accurate results.”
Digital Coating Thickness Meter for Automotive Inspection, CM-224
The CM-224 provides accurate, instant readings with a focus on automotive coatings, including paint, filler, and galvanized layers. Its automatic substrate detection recognizes steel, aluminum, and galvanized steel, making it a flexible choice for various vehicle inspections. The device’s large backlit LCD ensures clear visibility, and it supports both spot and continuous measurements, ideal for professional and DIY users. Its main limitation is that it’s designed exclusively for metal surfaces, so it’s not suitable for plastics or composites. Battery operation is required, and users may find calibration procedures slightly cumbersome at first.
Pros:- High accuracy and easy to use
- Automatic substrate detection
- Large backlit LCD for easy reading
- Supports spot and continuous measurements
Cons:- Limited to metal surfaces
- Batteries required
- Calibration can be somewhat cumbersome
Best for: Automotive technicians and DIY enthusiasts inspecting metal coatings
Not ideal for: Those needing to measure non-metallic surfaces or conducting industrial coatings on composites
- Resolution:0.1 μm
- Range:0–1500 μm
- Substrate Detection:Fe, NFe, Fe+Zn
- Measurement Modes:Single & Continuous
- Calibration:Factory, zero, multi-point
- Display:Backlit LCD
Our verdict“Perfect for automotive inspections requiring versatile, quick, and reliable readings on various metal substrates.”
How We Picked
To determine the best paint thickness gauges for coating inspection in 2026, I focused on key factors like measurement accuracy, substrate compatibility, ease of use, and data management. I prioritized models that are designed specifically for metal surfaces, as these are most common in automotive and industrial settings. I also evaluated user-friendly features such as automatic substrate detection, calibration options, and display readability, balancing these with tradeoffs like power requirements and limited material compatibility. Ultimately, my selections reflect tools that offer reliable performance in real-world inspection scenarios, with clear distinctions based on their strengths and limitations.
| paint thickness gauge for coating inspection | Substrate Detection |
|---|---|
| Coating Thickness Gauge CM-208 | — |
| Paint Thickness Gauge CM-205FN | Automatic Fe/NFe |
| Digital Coating Thickness Mete | Fe, NFe, Fe+Zn |

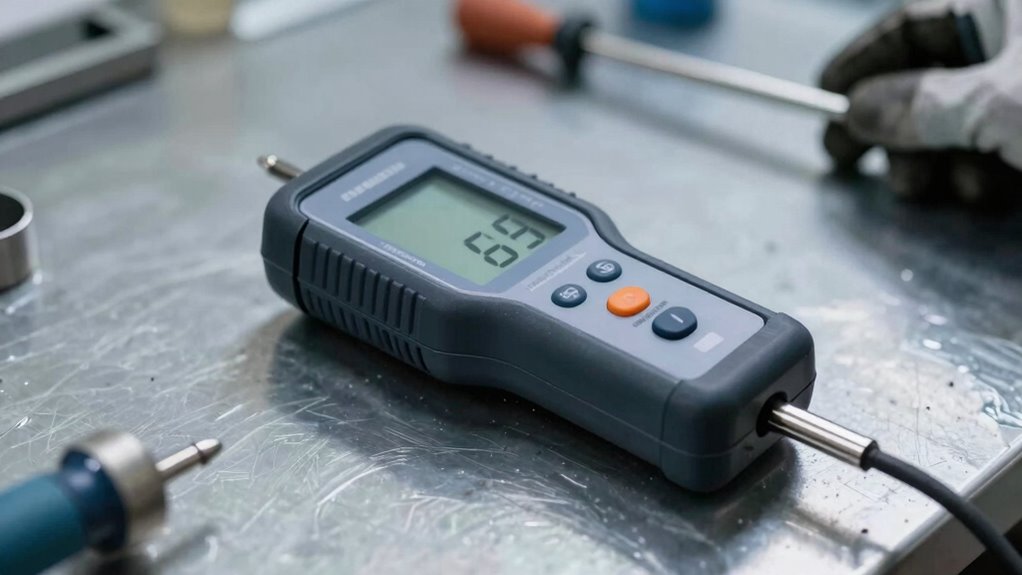

Factors to Consider When Choosing Paint Thickness Gauge For Coating Inspection
When selecting a paint thickness gauge for coating inspection, the key considerations include measurement accuracy, substrate compatibility, ease of use, and data management features. The right tool depends heavily on your specific application, whether professional automotive detailing or industrial quality control. It’s vital to understand the material you’ll be inspecting and the conditions under which you’ll work, as these factors influence the choice of device, especially regarding substrate detection and measurement range.
Measurement Accuracy and Resolution
High precision in paint thickness measurement is essential for detecting subtle differences, such as repainting or coating inconsistencies. Models like the CM-208FN offer resolutions as fine as 0.001 mils, making them suitable for detailed inspections. For general automotive use, a resolution of 0.1 μm often suffices. Consider your inspection needs—if you require very detailed data, prioritize models with higher resolution and accuracy.
Substrate Compatibility and Detection
Most gauges in this category are designed for metal surfaces, primarily steel and aluminum. Automatic substrate detection simplifies operation and ensures measurements are taken on compatible materials. If you work with plastics, composites, or layered coatings, you’ll need a device capable of handling those materials or consider different tools altogether.
Ease of Use and Data Management
Features like backlit displays, simple calibration, and automatic detection reduce user errors and save time. Data export options, such as USB, enhance reporting—especially important for professional inspections. Devices like the CM-208FN excel here, offering straightforward operation and comprehensive data handling, but they may be overkill for casual users who only need quick checks.
Power and Calibration
Battery life and calibration procedures can impact long-term usability. Some devices require frequent calibration or power source replacements, which can be inconvenient. Always check if batteries are included and how complex calibration processes are, especially if you plan to use the gauge frequently or in field conditions.
Frequently Asked Questions
Can these gauges measure non-metallic surfaces?
Most of the models reviewed here are designed specifically for metal substrates, such as steel and aluminum. They rely on magnetic induction or eddy current technology, which are ineffective on plastics, composites, or layered materials. If you need to measure non-metallic coatings, you should look for gauges that are explicitly designed for those materials.
How important is measurement resolution in coating inspection?
Resolution determines how finely the gauge can detect small differences in coating thickness. For automotive paint layers, a resolution of 0.1 μm is generally sufficient for identifying repainting or thin coatings. For more detailed research or industrial inspections, resolutions like 0.001 mils provide more granular data, but they also come with higher costs and complexity.
Are automatic substrate detection features reliable?
Automatic detection simplifies measurement by identifying whether the surface is ferrous or non-ferrous, reducing user error. While generally reliable, these features can sometimes struggle with layered or complex coatings, or if the surface has contaminants. It’s advisable to verify readings manually if precise measurement is critical.
Do these gauges require calibration before each use?
Most models come with factory calibration and may require zero or multi-point calibration periodically to maintain accuracy. Calibration ensures the device’s measurements remain precise over time, especially if used frequently or in varying environmental conditions. Proper calibration routines are usually straightforward but should be followed carefully for consistent results.
How do I choose between a handheld gauge and a more advanced model?
Handheld gauges with basic features are suitable for quick, general inspections and are often more affordable. Advanced models with data export, higher resolution, and automatic detection are better suited for professional environments requiring detailed records and high precision. Your choice depends on your inspection needs, budget, and whether you prioritize ease of use or detailed data collection.
Conclusion
If you’re a professional conducting detailed inspections and need extensive data management, the Coating Thickness Gauge CM-208FN offers precise measurements and robust reporting features. For automotive technicians and enthusiasts seeking a balance of ease and accuracy, the CM-205FN is a reliable choice. Meanwhile, the CM-224 is ideal for those who want quick, versatile readings across various metal surfaces with minimal complexity. Your choice hinges on your specific application, material focus, and whether detailed data or convenience is your priority.
